Triple roller support

product details

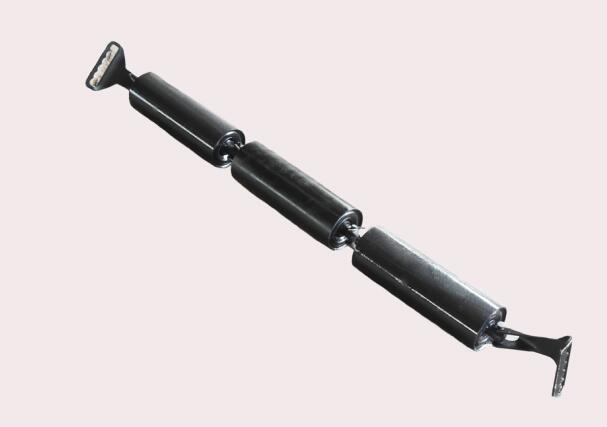

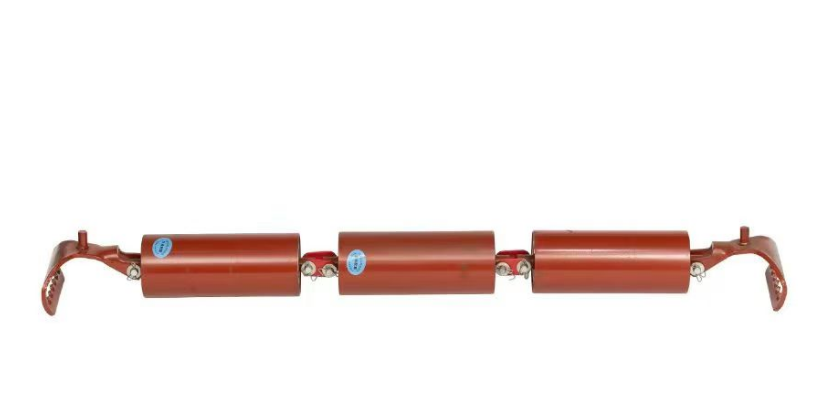

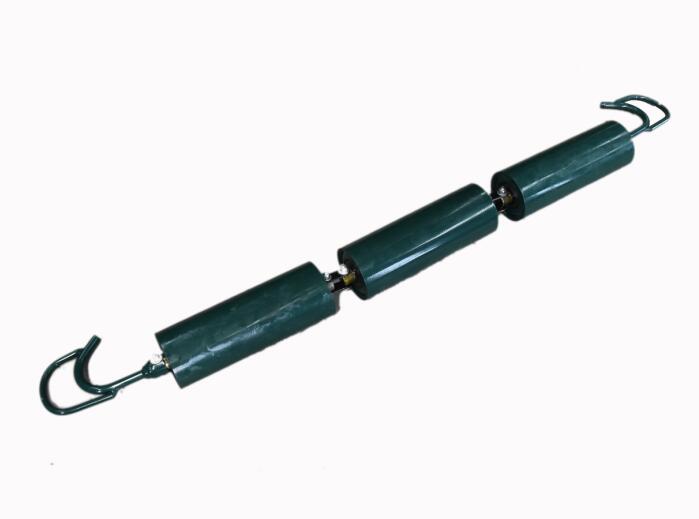

The triple rollers are formed by a structure consisting of three hinged rollers, which are connected together by connecting plates and hung on the longitudinal beam of the belt conveyor by hooks.

The triple roller has good self balancing ability, which can prevent the tape from deviating. If the tape deviates after using a suspended roller, the material will be redistributed during operation, causing deformation of the roller group plane and asymmetric load on the side rollers.

The inclination angle of the reverse roller located on one side of the tape deviation is greater than that of the other side roller, which causes the middle roller to deflect and generate centering force. This centering force will generate a thrust opposite to the direction of deviation on the tape, ensuring that the tape conveyor can always operate normally under various conditions such as feeding errors, temperature, wind direction changes, etc. due to the characteristic of the tape correction suspension groove roller.

Performance characteristics of triple roller:

1. The triple roller has the characteristic of corrosion resistance: acid, alkali and salt have no corrosive effect on it.
2. The triple roller has strong hardness and wear resistance.
3. Good sealing: The groove type roller is fully sealed, with plastic labyrinth sealing rings at both ends, which prevent oil and grease from leaking and can keep the rolling shaft for a long time; The groove roller operates in a fully sealed state.
4. Triple roller ceramic surface: forms an oxide film, has a smooth surface, does not adhere to materials, has a low friction coefficient in contact with the conveyor belt, and reduces the driving force of the winch.
5. Three connected rollers have a long service life: groove rollers have a 2-5 times longer service life than stainless steel rollers, and can reduce belt wear, prevent belt running, and extend belt service life.
6. Low operating costs: The groove type triple roller can reduce the overall cost of the belt conveyor and reduce maintenance hours.

The triple roller produced by our company has good self balancing ability, which can prevent the tape from deviating.
