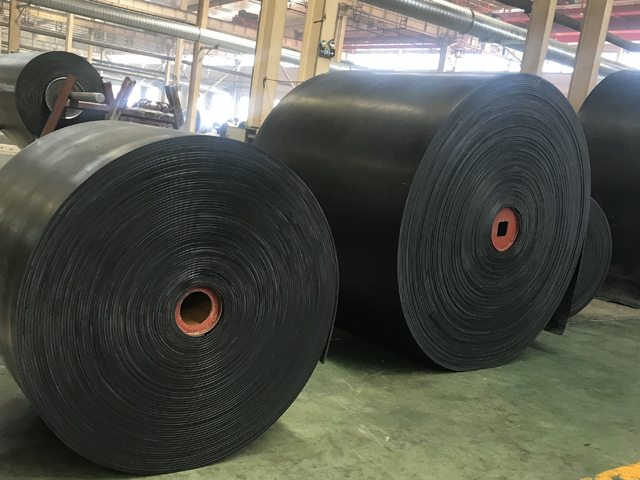

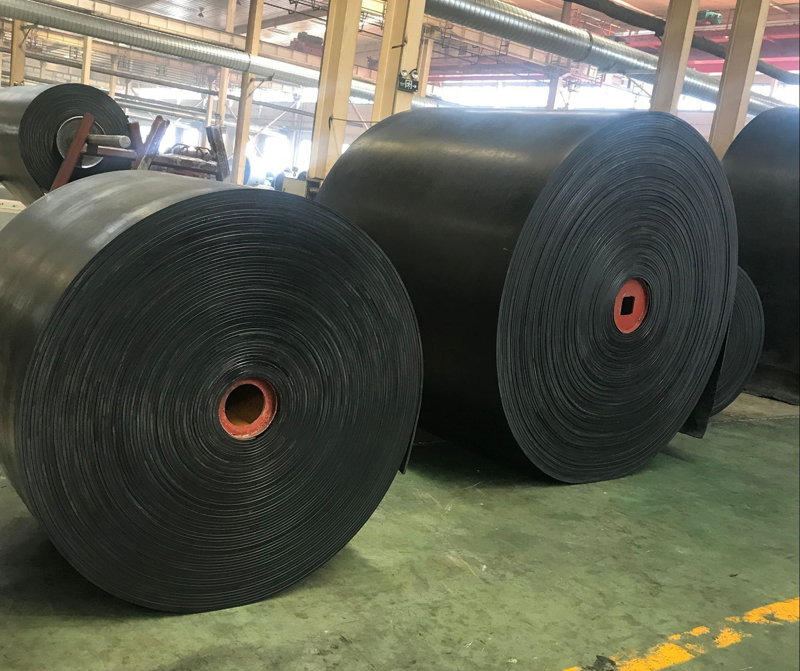

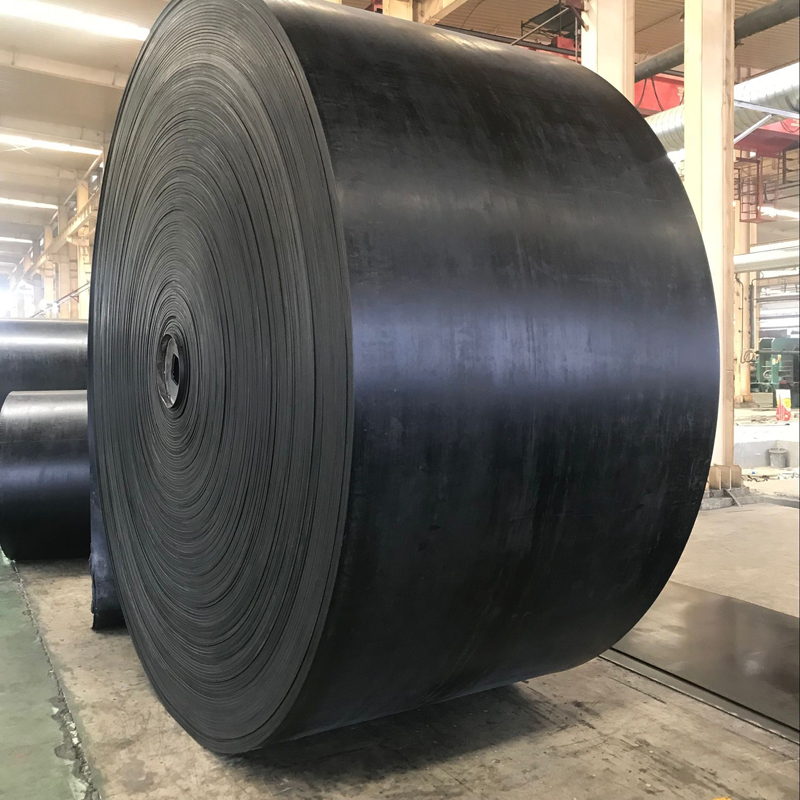

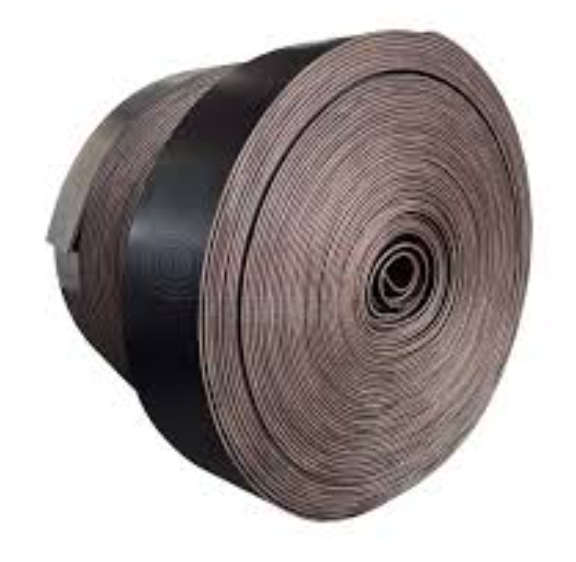

NN conveyor belt

Application: Belt is suitable in chemical industry, electric power, metallurgy, light industry, foodstuff machining and coal mine.

Technical standards: The following standards are usually applied: GB/T7984-2001, GB/T10822-2003, DIN22102, AS1332, JISK6322.

Specification/strength: 100N/mm-3150N/mm.
Width: 300mm-2000mm

Fabric type	Fabric stucture		Fabric	Ply thickness (mm/P)		NO.of fabric plies	Cover thickness		Width	Length
	Warp	Weft					Upper	Lower	mm	m
NN	Nylon	Nylon	NN100	1.0	2-10		2.0-8.0	0-4.5	300-2200	≤300
			NN125	1.0	2-10
			NN150	1.1	2-10
			NN200	1.2	2-10
			NN250	1.4	2-10
			NN300	1.6	2-6
			NN350	1.8	2-6
			NN400	2.0	2-6
			NN450	2.1	2-6
			NN500	2.2	2-6
Standard:DIN,AS,RMA,JISK,SABS
