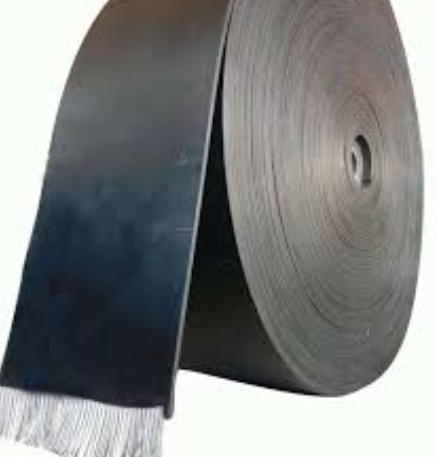

Cold Resistant Belt

Feature:
Cold resistant conveyor belt fabric specs:EP80~EP630,NN80~NN630,CC56 T.C56
Cold resistant conveyor belt width:350-2000mm
Cold resistant conveyor belt cover rubber:NR,BR,blended
Cold resistant conveyor belt properties:high elasticity,shock resistance,cold resistance etc
Cold resistant conveyor belt usage:suitable for conveying materials outdoors in freezing area,cols storage etc.
Cold resistant conveyor belt temperature:-45-+75℃

Product Characteristics:

The product selects cotton canvas,nylon canvas or EP canvas as carcass. Rubber cover selects a blend of NR and BR,which has the properties of high elasticity, shock resistance, cold resistance etc.It can work normally under the conditions of -40℃.

Usage:

It is suitable for conveying material outdoors operation in freezing area,cold storage etc.

Technical Indexes:

1. Cold resistant conveyor belt can be divided into three types according to the properties of cover: Laceration resistant(H), Anti-abrasion type(D), and ordinary type(L).

2. According to the different cold resistance,it can be divided into two types of C1 and C2: C1-Working temperature:-45~+50℃; C2-Working temperature: -60~ +50℃.Suitable for conveying materials outdoors in freezing area, cold storage etc.

Cover Physical Property Indexes:

Item		Index
		H(Laceration Resistant)	D(Anti-abrasive)	L(Ordinary)
Tensile strength/Mpa≥		24	18	15
Breaking elongation/%≥		450	400	350
Ageing experiment	Change rate of tensile strength/%	±25	±25	±25
(70℃,7d)	Change rate of breaking elongation/%	±25	±25	±25
Abrasion/mm3≤		120	100	200
Cold resistant coefficient at elongate≥	C1（-45℃）	0.3
	C2（-60℃）	0.2
Note:
C1—temperature condition is -45℃~+50℃
C2—temperature condition is -60℃~+50℃
