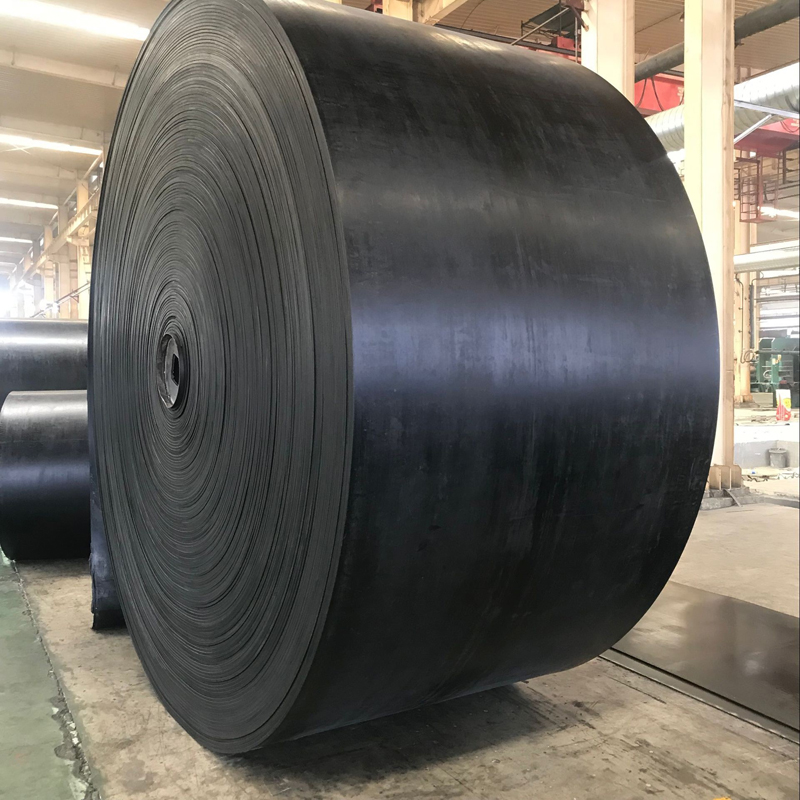

CC Conveyor Belt

Application: Used in mine, cement plant, steel and Iron factory, metallurgy, construction, ports and etc.

Feature: Traditional conveyor belts, suitable for medium and short distance transportation of materials

Standards:
DIN, BS, AS, RMA, JISK, SABS etc.

Features:
Traditional conveyor belts, suitable for medium and short distance transportation of materials.

Structure:
It uses multi-layer cotton canvas or terylene cotton canvas as carcass and finished through the processes of calendering, firming and vulcanizing, etc.

Fabric	Fabric	Fabric	Ply thickness	No.of	(mm)		Winth	Length
type	structure	specs	(mm/P)	fabric plies	Cover thickness		mm	m
	Weft				Upper	Lower
Cotton	Cotton	CC-56	1.1	2~6	2~8	0~4.5	300-2300	<=300
(CC)	(C)
Polyester	Cotton	TC-70	1		1.5~8	0~4.5	300-2300	<=300
Cotton	(C)			2~6
(TC)
Standard Of Conveyor belt:DIN, BS, AS, RMA, JISK, SABS etc.
